Projects Undertaken - R&D

We are looking for investors and partners to develop and grow the diffusion of Biosanilys
platform in different countries and to extend the Global GSM Biosanilys Network.

A global Biosanilys GSM network can help spread air quality control and be more ready
to defend ourselves from viruses.
Data collection and air monitoring are essential for everyone's safety.

We eliminate the misuse of 4G, 5G networks. To connect a Biosanilys module to the internet
like the Travelmate, you only need a GSM connection.

Let us commit ourselves to make technology intelligent, remembering that everyone's
well-being and health start also from us.

New technologies are on our side.
The Biosanilys project was born around the concept making use of using technology

and respecting the environment.

Acuadrop & Renewable energy

Acuadrop project is born under personal experiences on the specific field. We invested 3 years to develop Acuadrop project, on serious and real and hard field applications. We added to it also local people testing experience and continuous product test verification. After this process we have now a large experience that we daily use to improve the quality and the performance of Acuadrop.
We want to offer our contribution to the development of products and systems of drinking water filtration for human consumption, used in places and situations that strongly need safe drink water.
Water is a precious and useful commodity for any person, a good that must be respected and absolutely cared for. This is what Bioecoever realizes with the Acuadrop project.

Acuadrop Rack to produce drink water from sea water everywhere.
Self powering , low power comsuption.

Acuadrop … more than water

What is Acuadrop

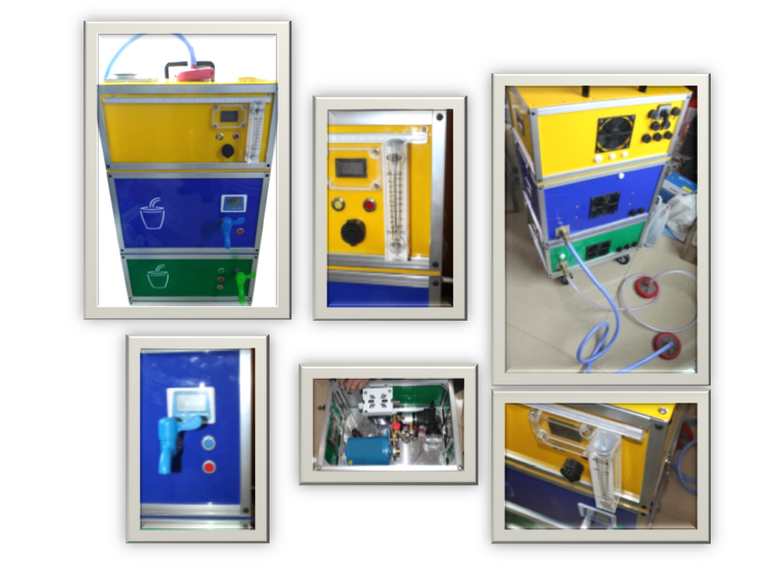

Acuadrop Rack is an All in One portable wireless system with low energy consumption, designed to filter water, removing impurities and micro-organisms that are harmful to human use, suitable to work in places and situations where there is no availability of drinking water and energy to produce it.

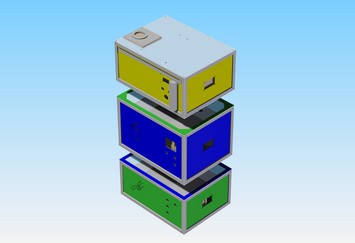

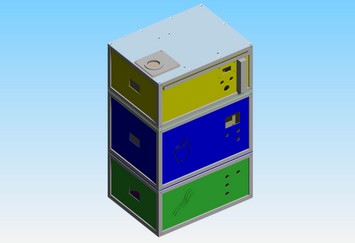

Acuadrop Rack uses non-compliant sea water or fresh water to produce excellent, healthy and balanced drinking water. The machine consists of 3 units:

Green Marine Rack    ( Water Maker)
Blue Filter Rack          (Water Drink Purifier)
Yellow Power Rack    (CPU & Energy controller )

How does it work
All in One water filter purifier, Wireless, transportable (wheeled) system for mobile use or fixed installation for outdoor use, community and primary needs. Self-powered, it does not require an electrical connection to operate (energy autonomy of about 2 hours for Green Marine Rack and 4 hours for Blue Filter Rack). The operation provides a desalination cycle (with washing at the end of the cycle) and a fresh water purification process for drinking water production. Yellow Power Rack, operation control module and automatic power supply / fast battery charger via photovoltaic system / 220V network (external module). Wifi control remote option for diagnostics and maintenance. Automatic and manual functions are provided for both processes.
Acuadrop Rack is an eco-sustainable machine, it does not use plastic bottles to help respect and save the environment. Its components are 100% recyclable. It is user friendly, does not contain or uses substances that are harmful to health and the environment.

Acuadrop is a project with Italian design, born following the tests and personal experiences gained in over three years of field work carried out in South Pacific. “Acuadrop , more than water ”, start working where the other common filters stop.

Green Marine Rack. Wireless portable water maker 2 hours of energy autonomy. Pre-filter section, autopriming pump, 60 bar high-pressure pump with low energy consumption controlled by inverter, 2540 membrane for salt water treatment, self-regulating recirculation system for stability and optimization of electricity consumption, RO pressure, remote control, luminous status display , flow meter, 10L internal container for storage of produced water.

Marine Rack operational details
1. Process used: Controlled reverse osmosis 60 Bar.
2. Inlet water: Salt Water by means of a quick-fit connector for connection to a hose with a filter.
3. Output water: fresh water that can be taken from a pressurized tap. Internal collection container 10L
4. Hourly production of fresh water 40 L / H (full power)
5. Energy autonomy off line 2H
6. 24VDC operation.
7. Max required power 2000W supplied by Power Rack.
8. Automatic energy control function (energy autonomy control).
9. Manual / automatic adjustment (optimized) osmosis process.
10. Quick piping connections.
11. Microprocessor process control, power supply and recharge (Power Rack)
12. Water-proof polarized connectors for I / O interfacing connections (Power Rack).

Blue Filter Rack. Purifier filter to produce portable wireless drinking water 4 hours of energy autonomy. Pre-filtration section, autopriming pump, 8 bar high-pressure pump with low energy consumption controlled by microprocessor, self-regulating recirculation system for stability and optimization of electricity consumption, remote control, luminous status display, 8L pressurized internal container for drinking water storage . Drinking water supply control with selection and light guide for economy use. Deliverable water cooling (optional).

Blue Filter Rack operational details
1. Process used: Pre-filtering and microfiltration, Reverse Osmosis controlled 8 Bar, mineral enrichment and softener.
2. Inlet water: Fresh water by means of a quick-fit connector for connection to a hose with a prefilter for external draft from a can, a well or a river or a direct inlet water from an internal tank by Green Marine Rack.
3. Water Guard online TDS function for continuous water quality control.
4. Output water: selectable water drink that can be taken from:
A. Pressurized controlled outlet for glass only.
B. Pressurized controlled outlet for container loading (1.5 L)
C. Pressurized controlled output connector (full load)
5. Fresh water production 240 L / H (full power)
6. Energy autonomy off line 4H
7. 24VDC operation.
8. Maximum power required 500W provided by Power Rack.
9. Automatic energy control function (energy autonomy control).
10. Manual / automatic adjustment (optimized) osmosis process.
11. Quick piping connections.
12. Microprocessor process control, power supply and recharge (Power Rack)
13. Water proof polarized connectors for I / O interface connections to Power Rack).

Yellow Power Rack. Microprocessor control unit. Manages entirely the operation of Acuadrop Rack, in its two sections Green Marine and Blue Filter.
Wireless Power Functions, process automation, diagnostics, parameter settings and wifi remote control. Energy use optimization, recharge management with 100W MPPT photovoltaic system or direct power supply from the mains using a 220V / 24V external automatic rapid battery charger / charger.

Acuadrop Rack dimensions and weight
Overall dimensions of single modules:
Green Marine Rack: 39 x 51 x 25 cm
Blue Filter Rack: 39 x 51 x 35 cm
Yellow Power Rack: 39 x 51 x 25 cm
Overall dimensions of the machine (with trolley): 39 x 51 x 100 cm
Total weight: 46 KG (complete machine of the 3 sections and trolley)
Custom configurations available upon request.

Also Acuadrop project bases its operation on the principles of using renewable energy, to which
we are totally oriented.

We are also looking for Acuadrop followers to improve our complain to reduce use of plastic bottles, the oceans are full of these dangerous products that are causes a lot of damage to our echosystem. Acuadrop don’t want use plastic bottles, follow it !

Oceans are full of plastic bottles

Renewable energy is the second application field, focus now by Biocoever :

THE NEW SOLID STATE GENERATOR

( NO NOISE NO FUEL NEED)

ONE Step AHEAD to the REAL GREEN ENERGY GATEWAY
for VPP connections

PWG1 220Vac 0.5 KW
PWG2 220Vac 1 KW
PWG3 220Vac 2.5 KW

info@bioecoever.com

PowerGate + produces fully Green energy, and was created to be connected to the VPP a virtual power plant (VPP) is a network of medium-scale decentralized power generation units such as green cogeneration units (CHP) such as the Powergate +, such as wind farms, solar farms as well as flexible energy consumers and storage systems.

The Virtual Power Plant (VPP) is a key technology for solving the tasks of a distributed energy world. VPP not only allows you to aggregate thousands of electricity producers, consumers and storage units, it also allows you to offer power and flexibility in different markets by intelligently controlling grid feed and consumption.

Join us with the VPP using PowerGate+

and then also....

• Hydroset Compact Hydrogen Generator with dynamic pumped System Controller

• Photovoltaic generator Plant Inverter

• DC Brushless motors Sensored high efficiency applications

This new technology, Brushless Sensors high efficiency DC Motor , it has a large field of applications , see to example new mobility , as electrical vehicle, motorbike, electric bike a real clear solution to protect and to respect enviroment and reduce polution.
They are a real example of renewable energy use and optimization, high performance, high efficiency, fully environment respect , and competitive price. We need absolutely do that !

The products and renewable solutions we propose want help to save and improve the quality of the environment, proposing the use and optimization of renewable energy through advanced technical solutions, born from our personal experience in the field and the effort we do every day to do something useful for the daily life.

These are our goals, this is what Bioecoever can do and is great to be able to offer it.

Our experience, in conjunction with our personal experience, enables Bioecoever to be dynamic enough to tackle almost any hardware and software development project. Bioecoever has a proud history of utilizing experience to provide our clients with the best solutions possible at the right price.

To effort to develope our quality products and our research we are looking for investors and business angels interested to support us in our project job, and also to promote our projects and products into the market. So if you’re interested in discussing your particular development concept or idea, or if you are simply interested to invest your money in the right way in new technology development, please contact us, we will be very glad to sharing with you our projects.
