TravelmatE 2022

Your Personal Bio Air Computing Purifier

Air purification is a very broad and complex topic that must be addressed carefully.
The new Travelmate 2022 Line offers with its 5 versions, dedicated solutions designed to ensure the right balance in air purification, depending on the intended use in which to apply the Travelmate.
Each line works controlled by the digital process Bio Air Computing Purifer by microprocessor, maintaining high levels of analysis, control and safety with the individual functions and programs provided by the 5 models.
Each version is assigned an "Air Quality Membership Index" which serves to indicate the degree of activity in Bio Air Computing Purification. (see explanatory notes at the end of the chapter).

·      Travelmate Air-Monitor
·      Travelmate Air-Therapy Purifier
·      Travelmate Air-Basic Purifier
·      Travelmate Air-Modus Purifier
·      Travelmate Air-Plus Purifier

Let's see in detail the elements of the new Travelmate 2022 Line.

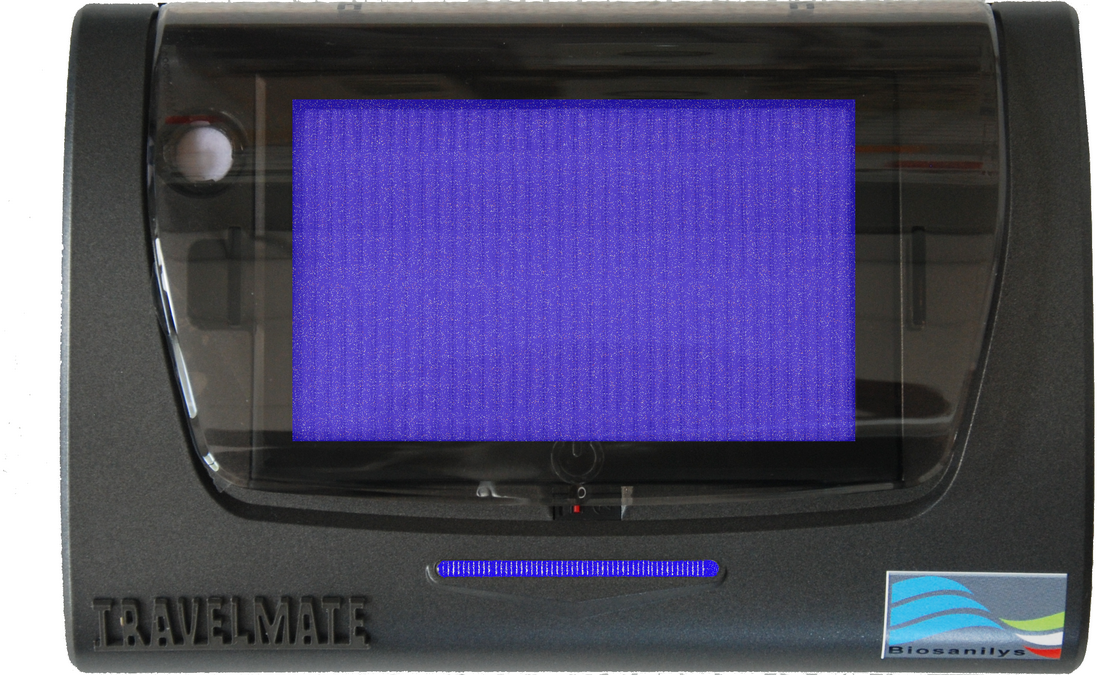

Travelmate Air Monitor version used for air quality monitoring.

The Digital Sensor checks the air quality in real time. The different color of the large upper window illuminated by Air Monitor RGB LEDs indicates the level of quality of the recorded air.
Air Montor represents the Entry Level solution as an air quality monitoring and control system, a real barrier to shield our health and well-being.
The implementation of the Output Remote Control function allows connection to the MODCOM module (optional) which provides 2 relay outputs for controlling external CO2 exchange and control management equipment, and 1 output for threshold acoustic alarm.
The MODCOM module also allows you to record the individual signals and alarms received by Air Monitor and send them to the monitoring software for PC or Android App, Bluetooth.
Air Monitor can be installed wherever air quality monitoring and surveillance are required. It does not operate any filtering or air treatment action. It works as a single unit.
Air Quality Index membership assigned to Travelamate Air Monitor : 2 (only if the Co2 Exchange function is actived).

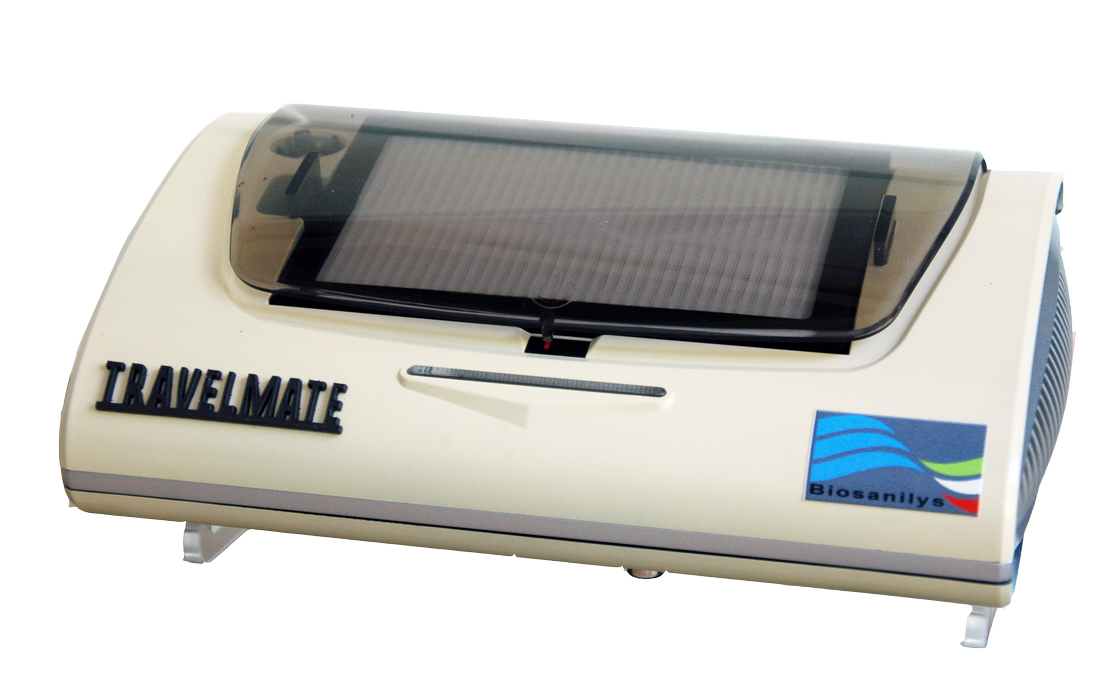

Travelmate Air Monitor

Travelmate Air Therapy Purifier

Travelmate version used in the Aromatherapy process, an holistic healing treatment that uses natural plant extracts to promote health and well-being. Air Therapy works using pulsed and modulated double ionization with a profile managed by a special algorithm (function that can also be customized for specific users). When switched on, an air analysis is performed and then the aromatherapy program assisted by the ionization process is started, which further increases and prolongs its already declared beneficial effects for health.
The air flow managed by the microprocessor and the various programs available make Air Therapy Travelamate a complete and safe All In one machine.
The Air Therapy version includes the Hepa 14 microfiltration process and activated carbon excitation action to obtain a complete and proper air purification process accompanied by the pleasure and benefits of aromatherapy.
The RGB led bar indicates the air quality levels and the selected program. The remote control (available option) allows remote control of the device. It can be used as a single unit.
Travelmate Aroma Therapy creates an air filtering and treatment action by means of ionization and aromatherapy. It can be installed wherever surveillance-improvement of air quality is required.
Air Quality Index membership assigned to Travelmate Air Therapy Purifier : 5

Travelmate Air Therapy Purifier

Travelmate Air Basic Purifier

Travelmate version used for the monitoring and air purification process by means of photocatalysis with a honeycomb nanoscale catalyst, pulsed and modulated UV LED lighting with digital control. It is one of the most advanced, safe and efficient processes obtainable from a low consumption portable device.
Continuous digital action air quality control, level sampling with preset values, continuous analysis and creation of the operating profile. Hepa14 microfiltration, activated carbon retro-reaction, servo ventilation. The RGB LED bar indicates the air quality levels and the selected program. It can be used as a single unit.
Travelmate Basic Purifier creates an excellent filtering and air treatment action. It can be installed wherever monitoring, surveillance and active improvement are required for safety and well-being in the environment.
Air Quality Index membership assigned to Travelmate Air Basic Purifier : 6

Travelmate Air Basic Purifier

Travelmate Air-Modus Purifier

Travelmate version with the same characteristics and functionality of the Air Basic Purifier version to which the Output Remote Control function has been implemented for connection to MODCOM module (optional) which provides 2 relay outputs for controlling external equipment for managing exchange and Co2 control in reference to current EU standards on indoor air quality and safety, and 1 output for threshold acoustic alarm.
The MODCOM module also allows you to record the individual signals and alarms received by Air Monitor and send them to the monitoring software for PC or Android Bluetooth App. Air-Modus Purifier can be used as a single unit.
Travelmate Air Modus Purifier creates an excellent filtering and air treatment action. It can be installed wherever CO2 monitoring in the environment, surveillance and active improvement for safety and well-being in the environment are required.
The Speech function is provided (through an additional module) thanks to which Travelamate listens to you and talks to you: you can send voice commands and receive audio indications on the state of the air.
Air Quality Index membership assigned to
Travelmate Air-Modus Purifier : 7

Travelmate Air Modus Purifier

Travelmate Air-Plus Purifier

Travelmate version used for the air monitoring and purification process by means of photocatalysis with very high efficiency nanoscale 3D catalyst, pulsed and modulated UV LED lighting with digital control, controlled by double pulsed inverse ionization. Self-test, self-learning, customization and parameterization functions of the operating profile.
The special algorithm allows the implementation of particular self-adaptive functions (automatic calculation of the number of people in the area) and customization of the same functions (circadian clock). It is one of the most advanced, safe and efficient processes obtainable from a portable, low consumption device, which makes it unique on the market.
Air-Plus Purifier can be used as a single or multi-module unit in the same environment. In addition, it can be connected to MODCOM module (optional) which provides 2 relay outputs for controlling external equipment for managing Co2 exchange and control, in reference to current EU standards on quality and safety of Indoor air and 1 Alarm output. acoustic.
The MODCOM module also allows you to record the individual signals and alarms received by Air Plus Purifier and send them to the monitoring software for Windows PC or Android Bluetooth App. The remote control (available option) allows remote control of the device.
Travelmate Air-PLUS Purifier creates an excellent filtering and Air Purification action, eliminating elements that are harmful to our health. It can be installed wherever CO2 monitoring in the environment, surveillance and active improvement, profiles and customized functions for safety and well-being in the environment are required.
The Speech function is provided (through an additional module) thanks to which Travelamate listens to you and talks to you: you can send voice commands and receive audio indications on the state of the air.
Air Quality Index membership assigned to
Air-Plus Purifier :10

Travelmate Air-Plus Purifier

What is Travelmate's Air-quality membership index?

The membership index (IA) is a reference index number (from 1 to 10) which serves to indicate the degree of activity in the Bio Computing Air Purificatition of the specific version in question, using the functions indicated, to achieve the "Bio Wellness Sphere""

In other words, the membership index makes us understand how quickly the Travelmate in question allows us to reach the condition of well-being (called "Bio Wellness Sphere") indicating, through a simple calculation, how long this is achieved.

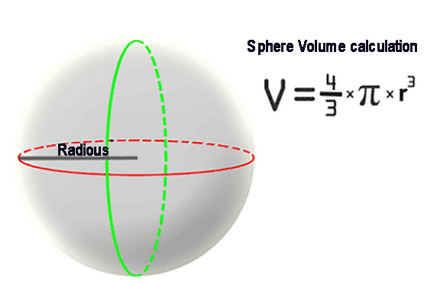

Note: the Bio Wellness Sphere corresponds to a sphere with a radius of 1m theoretical volume = of perfectly balanced air, free of pathogens, odors and fumes, which is created around the Bio Purifier TVM. Biosphere volume = 0.523 m3 (Vb)

Note : TVM = Travelmate.

Bio Sphere Calculation example:

Required volume Area (Va) = 2.5 x 2.5 x 2.5 = 15.625 m3

Volume correction constant (Kc) = 0.45

No of biospheres (Nb) = Va / Vb * Kc = 15.625 / 0.523 * 0.45 = 13.44 Bio Wellness Spheres

Purifier Model : TVM Air Modus = Membership Index (IA) = 7

Time required for the Biospheres Volume: Nb / IA = 13/7 = 1.857 h = 111 mins

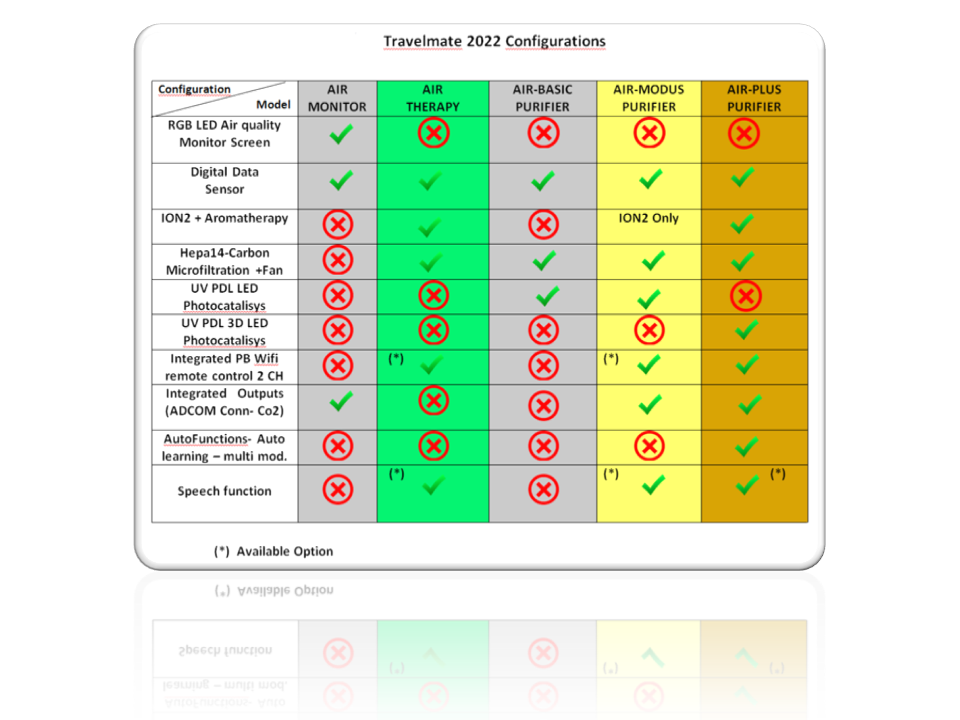

Travelmate 2022, 5 models, 8 functions, 3 user programs

for 1 safe and complete solution

in the Bio Computing Air Purification.
